SPECIFICATIONS

4G frequency: B1/B3/B5/B7/B8/B20

Antenna interface: Standard SMA interface

Feature: APP Remote Control

GSM frequency: 900/1800mhz

Power consumption: Standby 12V/50mA, working Max 12V/200mA

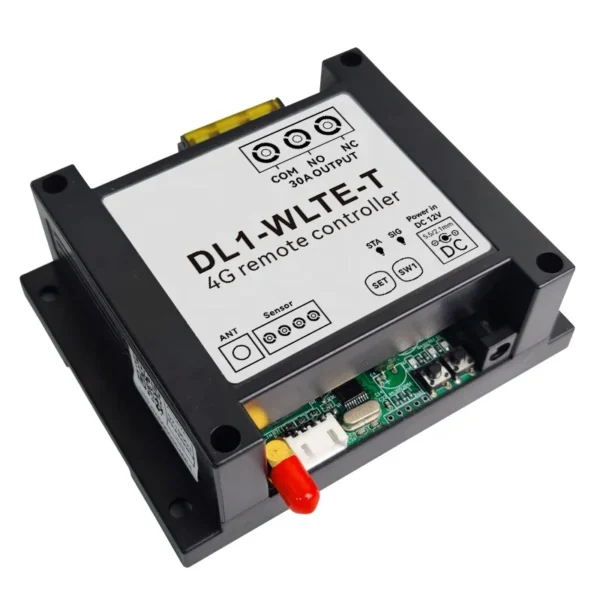

Product name: 4G TLE Remote Relay Controller

Relay output: 30A/30VDC, 30A/250VAC, 30A/125VAC

SIM interface: Standard SIM card

Temperature detect: -40℃ – 120℃

Usage: gate openers, Water Pump, Server, breeding, greenhouse

brand name: FD

function: Automatic

material: ABS

model number: DL1

place of origin: Guangdong, China

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-2{font-size:16px}#detail_decorate_root .magic-3{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-4{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-5{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{border-bottom-style:solid;border-bottom-color:#a8aaac;font-family:Roboto;font-size:24px;color:#000;background-color:#b1b0b0;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-7{width:750px;border-collapse:collapse}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:185px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:520px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:1101.2658227848103px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750.0000000000001px;height:1101.2658227848103px}#detail_decorate_root .magic-13{font-size:18px}#detail_decorate_root .magic-15{font-size:13px}#detail_decorate_root .magic-16{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-17{margin-bottom:0}#detail_decorate_root .magic-18{position:relative;width:100%}#detail_decorate_root .magic-19{width:750px;height:2434.1772151898736px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-20{position:relative;left:0;top:0;width:750.0000000000001px;height:2434.1772151898736px}#detail_decorate_root .magic-21{width:750px;height:1295.8860759493673px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-22{position:relative;left:0;top:0;width:750.0000000000001px;height:1295.8860759493673px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-25{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:373px;height:400px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:400px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:532.8571428571429px;height:400px}

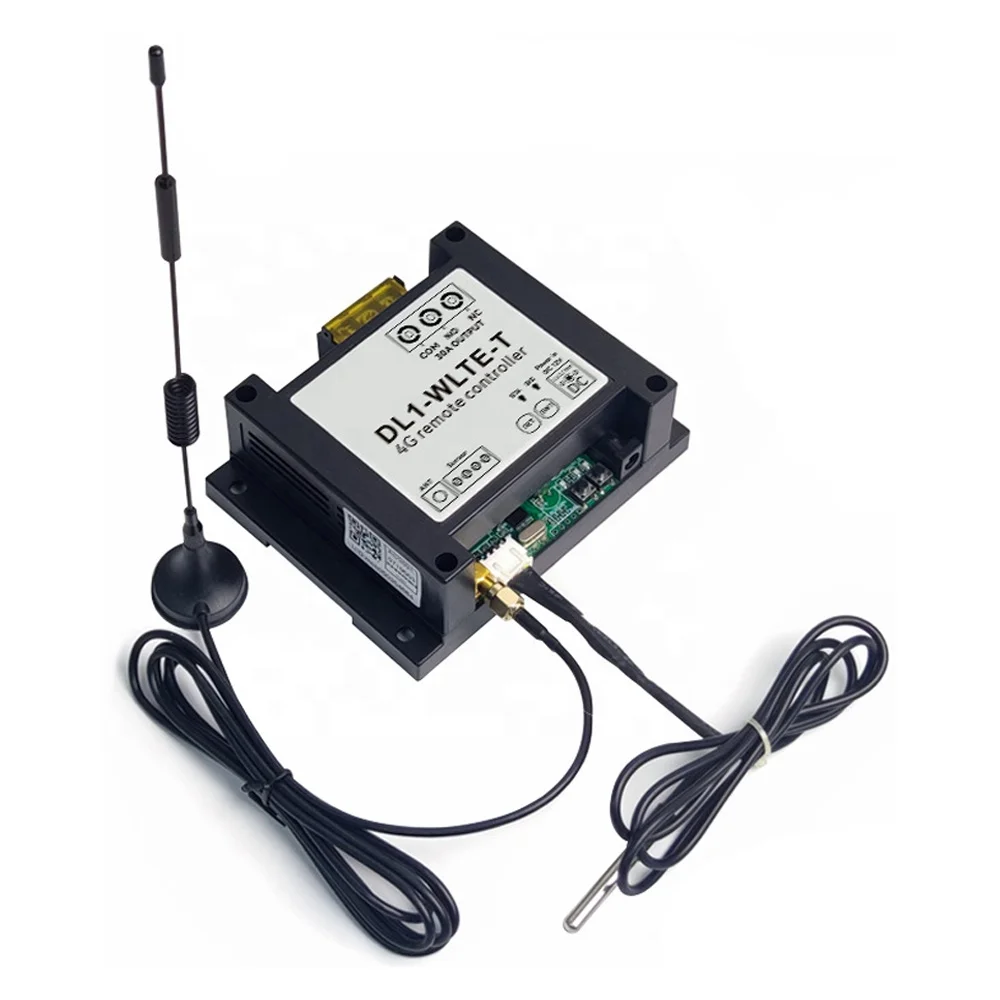

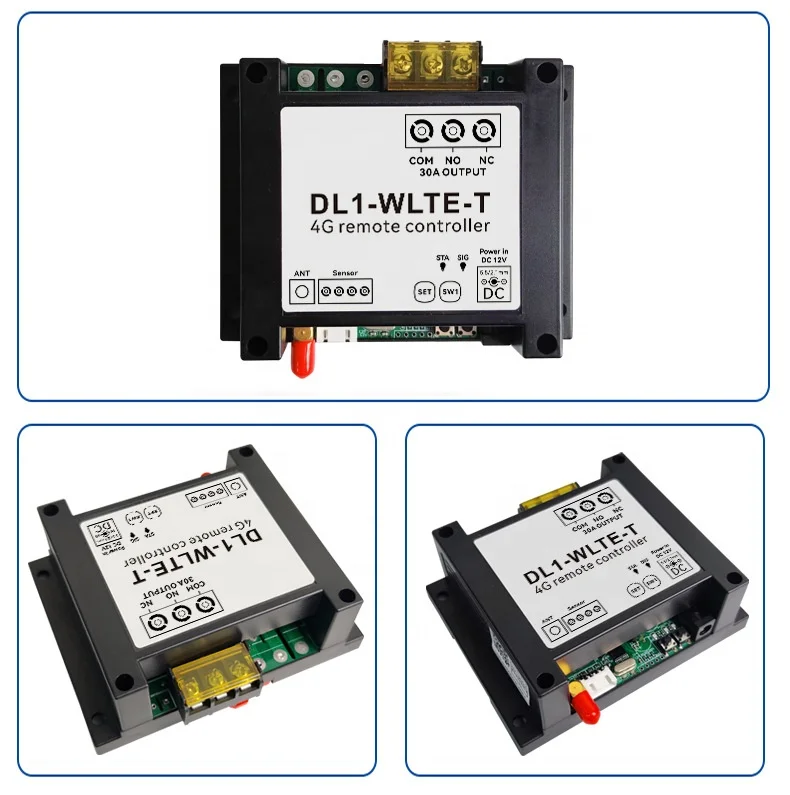

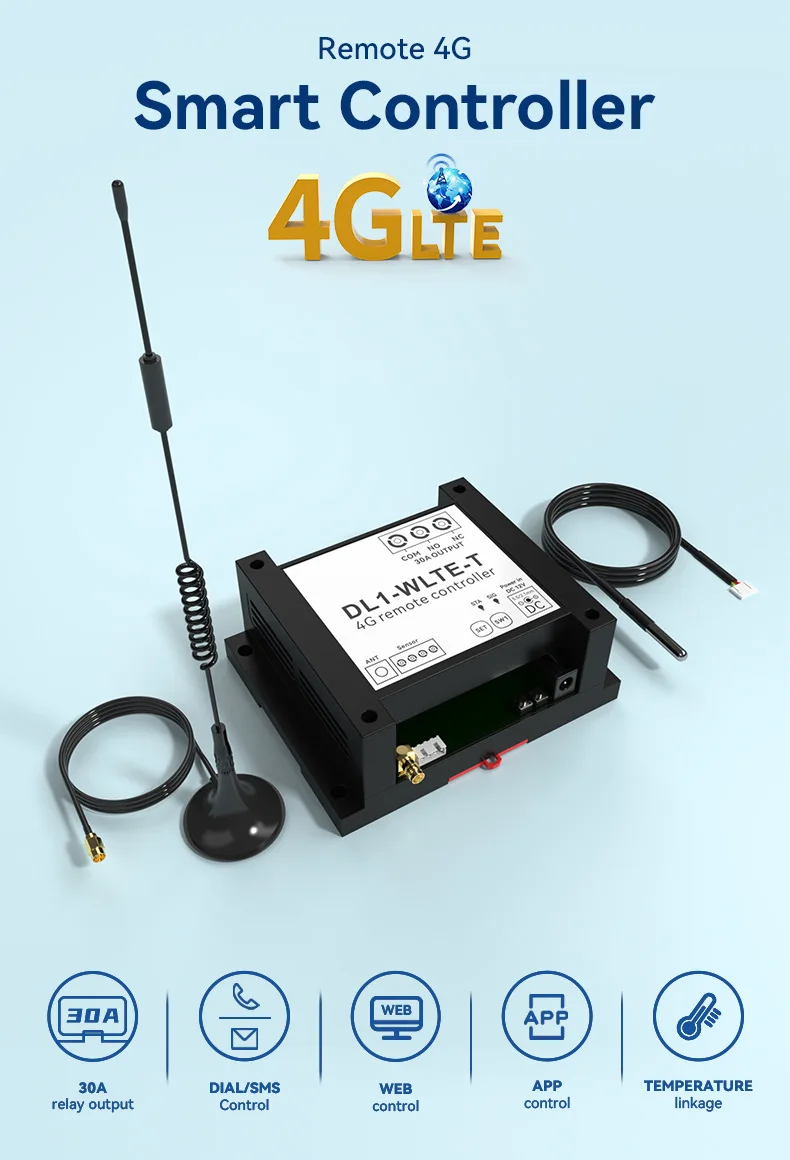

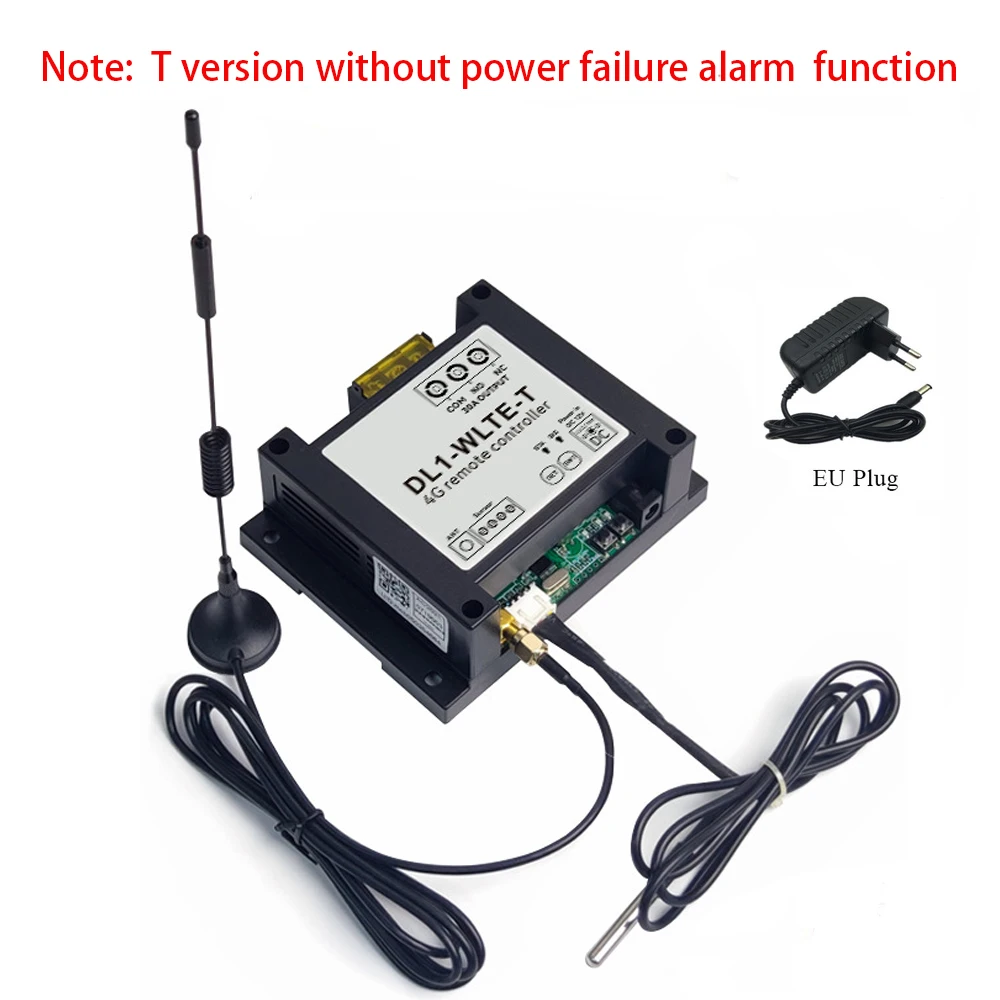

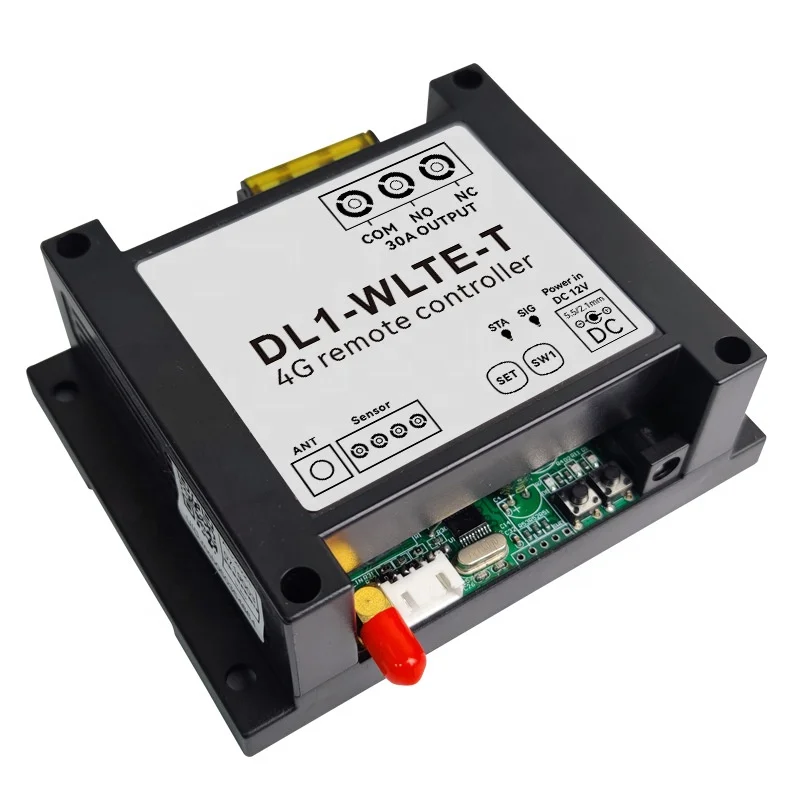

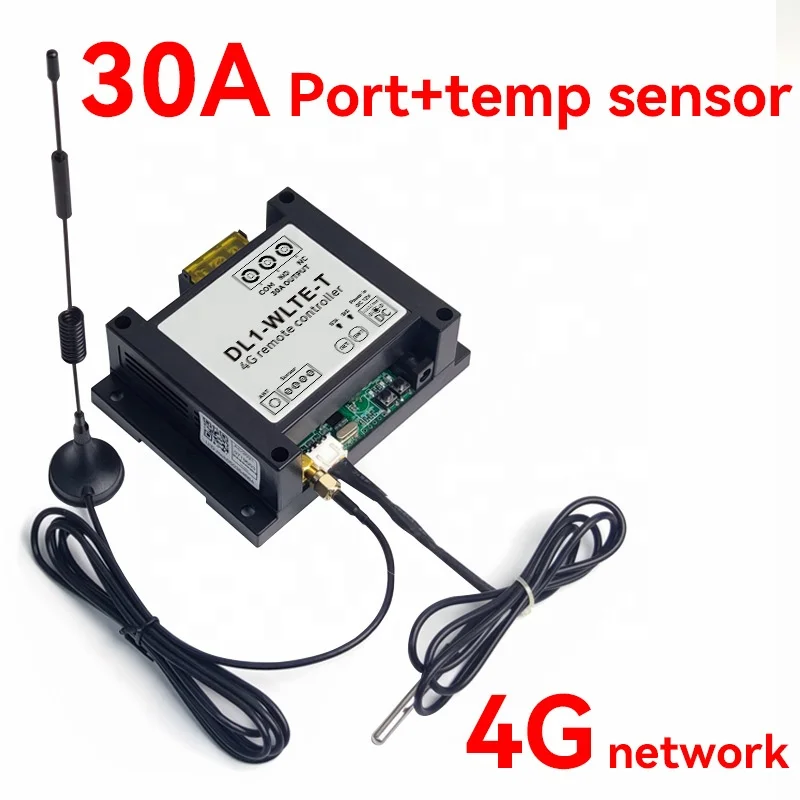

Smart Thermometer Thermostat 1CH Relay Switch SMS Remote Control Automation APP GSM Temperature Sensor 4G Relay Controller

Product Description

Product Name	4G TLE Remote Relay Controller
DC power supply	Standard adapter DC12V 1A
Work frequency	900/1800mhz
Power consumption	Standby 12V/50mA, working Max 12V/200mA
4G frequency ( LTE-FDD)	B1/B3/B5/B7/B8/B20

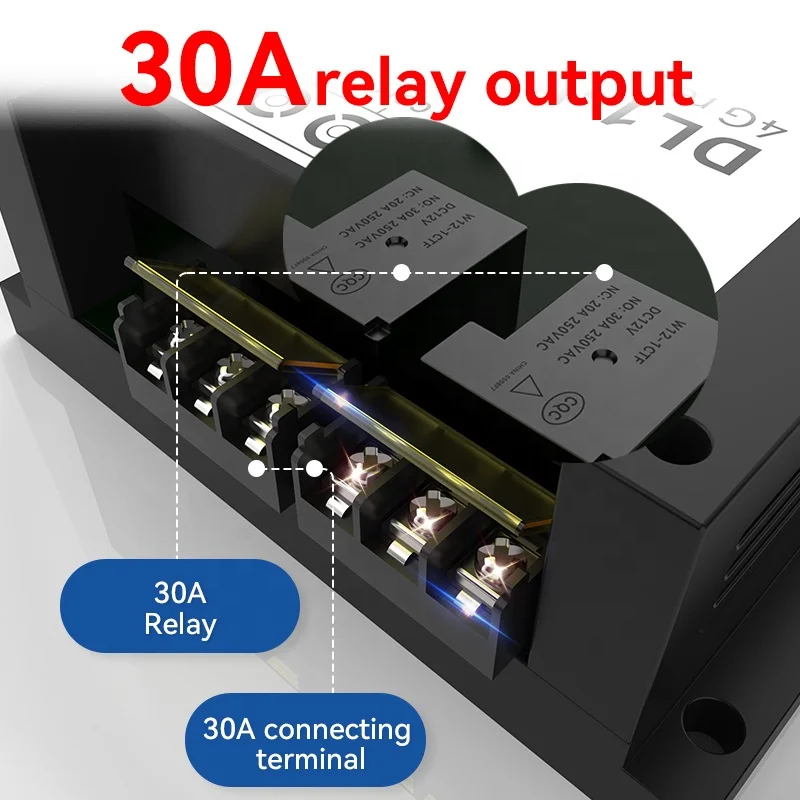

Relay output	1 channel, 30A/30VDC, 30A/250VAC, 30A/125VAC
Temperature detection range	-40℃ – 120℃
Contact us	Dear friends, if you have a large quantity, please contact us to quote you the best price. Thank you very much

Main features:

1. The controller need be installed with a 4G LTE SIM card. Please use your local 4G SIM card.
2. The controller has two relay outputs, each relay load is up to 30A. It can control all kinds of high power equipments on/off by SMS/Call or via App (WLTE Control) remotely. The App communicates with controller via 4G data internet acess.
3. With temperature sensor linkage, it can monitor real time temperature, trigger relay switch on/off when temperature upper or lower than the setting limit and push temperature alarm message.
4. Inching the relay state in short time. It is suitable to control electric Door Gate / Garage door.
5. Timing Control

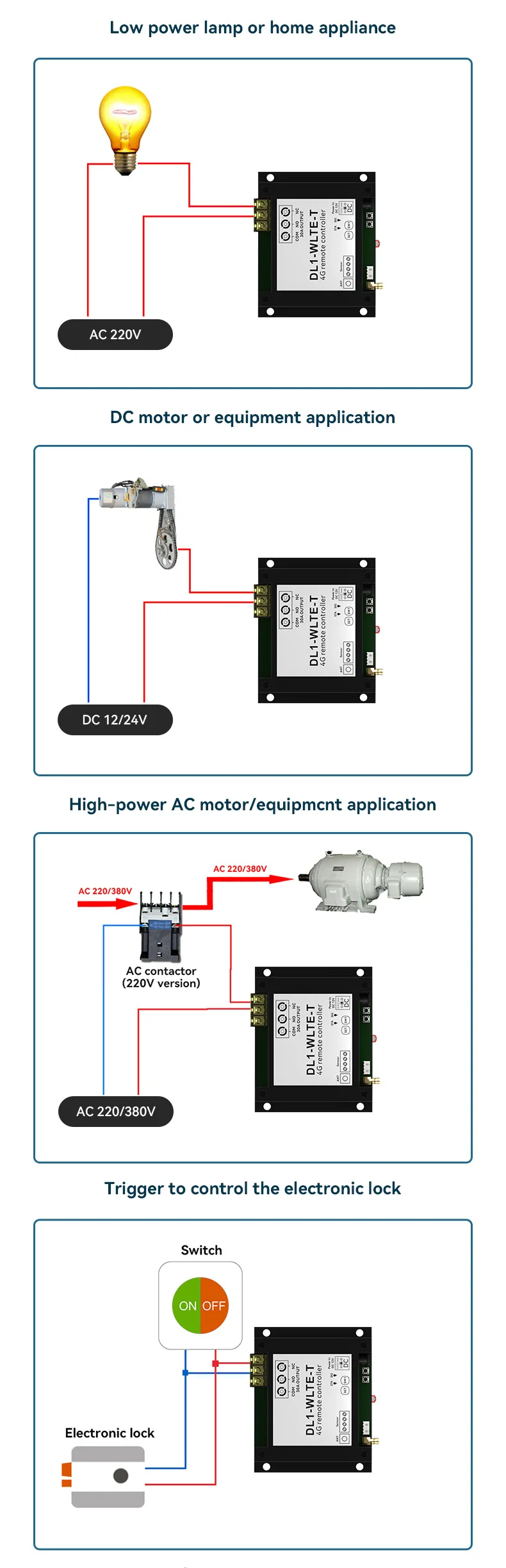

6. Application: it is widely applied to control all types of home appliance, door gate openers, AC Motor, Remote Base Station,Water Pump, Server, breeding, greenhouse etc.

4G TLE network global control, no distance limit.

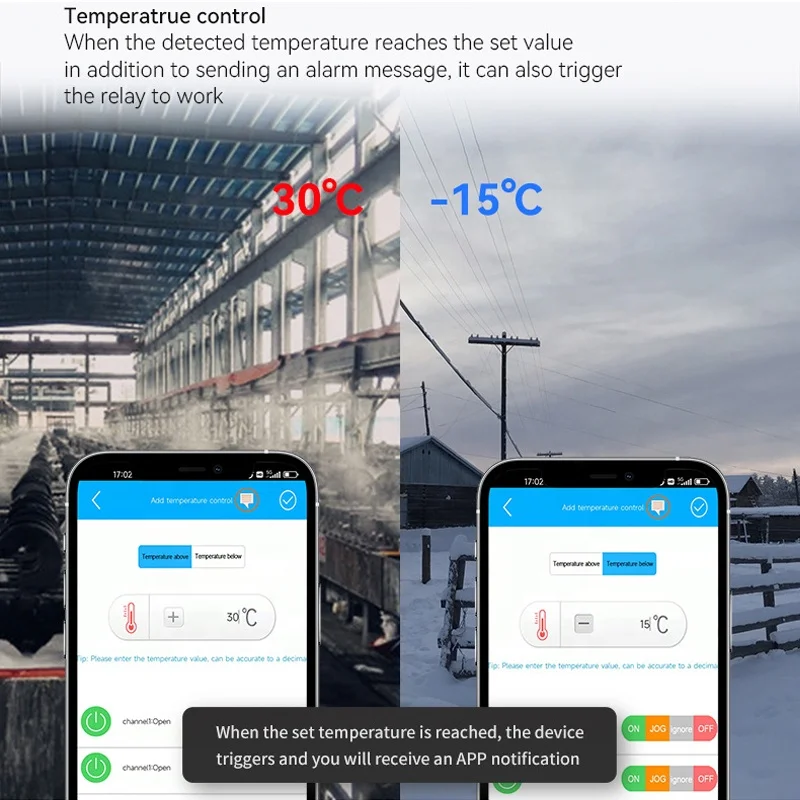

Upper or Lower temperature linkage relay on/off control : If the temperature is lower than (higher than ) the temperature you
preset , the device will switch on/off relay output automatically as your setting . For example : you can set when the temperature
is higher than 25 centi degree, turn on relay to start the cooler reducing room temperature. When temperature is lower than 10
centi degree, turn off relay.

Specification:

DC power supply: Standard adapter DC12V 1A
Power consumption: Standby 12V/50mA, working Max 12V/200mA
4G frequency ( LTE-FDD): B1/B3/B5/B7/B8/B20
GSM frequency: 900/1800mhz
SIM interface: Standard SIM card
Antenna interface: Standard SMA interface
Temperature sensor interface: 1 sensor port
Temperature detection range: -40℃ – 120℃
Relay output: 2 channels, 30A/30VDC, 30A/250VAC, 30A/125VAC
Output logic: Normally open and normally closed
Shell size: 115mm x 90mm x 40mm
Box size: 145mm x 127mm x 45mm
