SPECIFICATIONS
Battery Type: LiFePO4
Brand Name: Newsmy
Capacity: CE/FCC/ROHS
Grid connection: Off grid
Material: ABS + PC V 0 fire retardant material
Model Number: P72
Output Power Range: 0-5 kWh
Place of Origin: Hunan, China
System Type: Stackable
System Voltage: 20V
USB output: 18W
Weight: 2.5,2.5kg
input Voltage: 20V5A
type-c output: 100W
We have stock in the US, you can order directly!

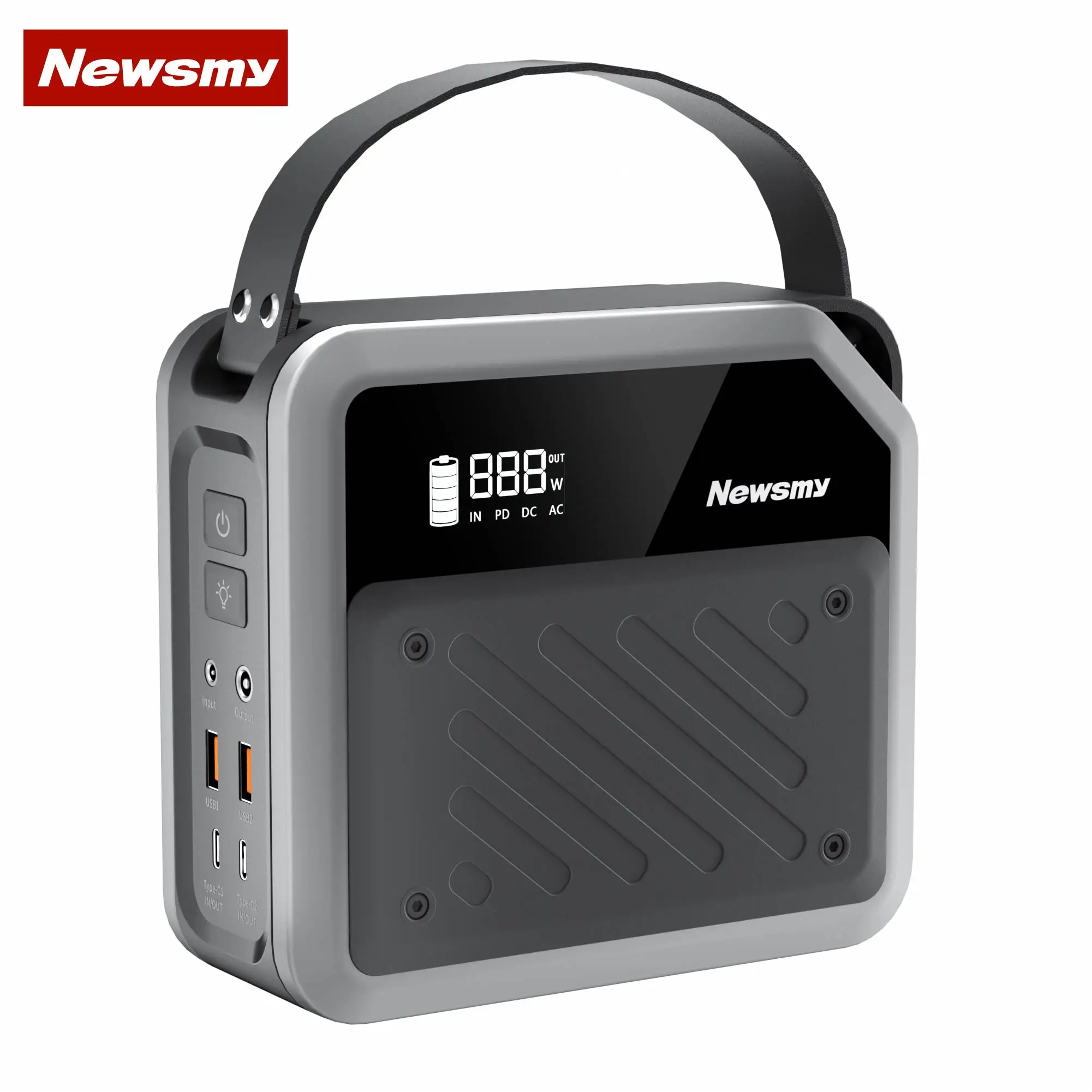

Newsmy fast charging pd 100w power banks Travel partner power supply portable small size DC output digital display
| Specifications | |
| Battery | LMFP Battery |
| Capacity | 266.4Wh (72000mAh) |
| LifeCycle | 2000+ to 80% |
| Rated Power | 200W |

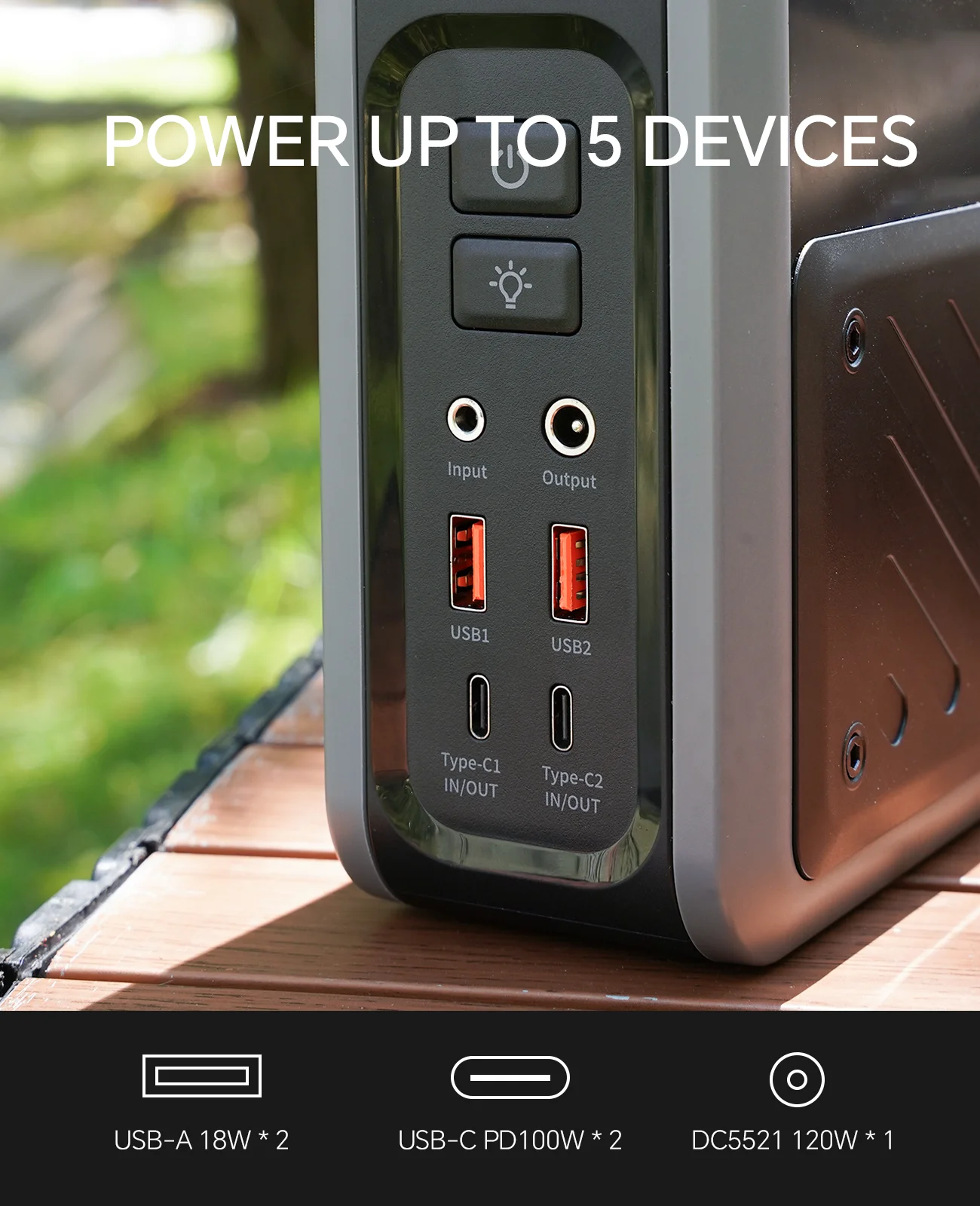

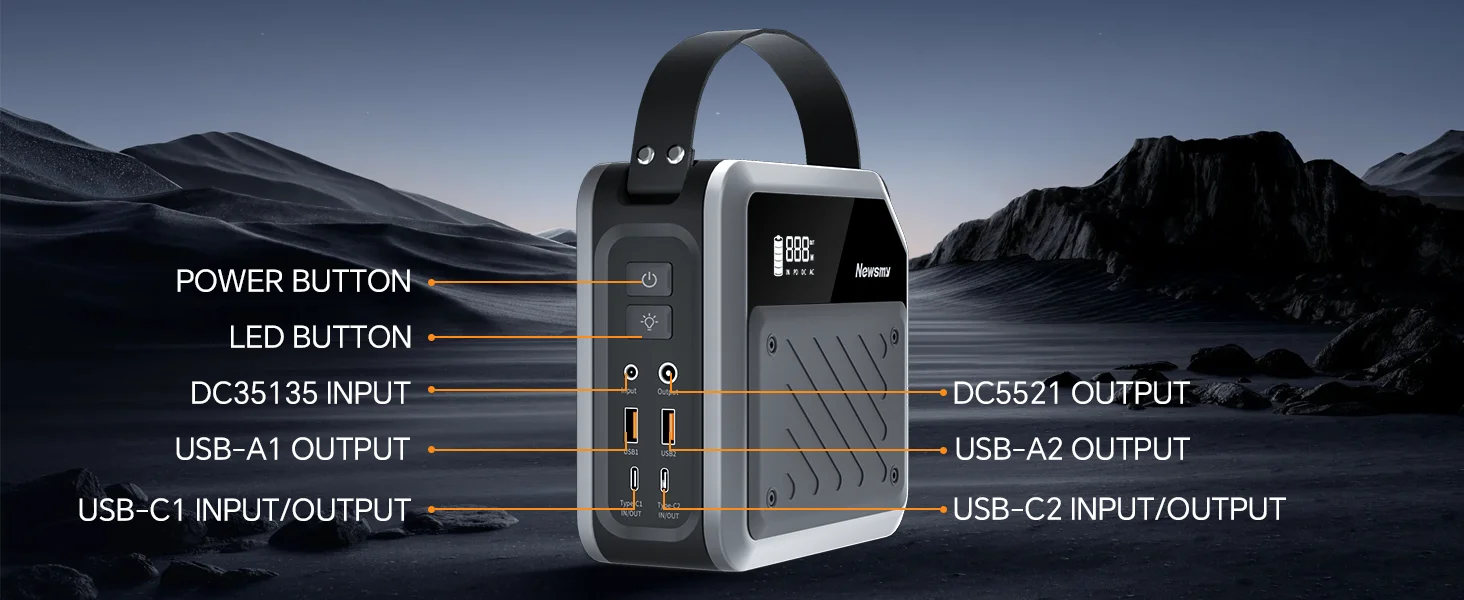

| Output Ports | |
| USB-1 Output | QC3.0 5V 9V 12V Max 22W |
| Type-C-1 Output | 5V-20V (PD-100W) |
| USB-2 Output | QC3.0 5V 9V 12V Max22W |
| Type-C Output | 5V-20V (PD 100W) |
| DC Output | DC5521 9.6V-12.6V 10A |
| Input Ports | |
| Type-C Input | 5V-12V (PD 100W) |
| DC Input |
12V-26V 100W (Support MPPT Input) |
Input parameters
|
Input parameters |
|||
|
Port |
DC |
Type-C1 |
Type-C2 |
|
Single port input |
100W |
– – – |
– – – |
|
|
– – – |
100W |
– – – |
|
|
– – – |
– – – |
100W |
|
Double ports input |
100W |
0W |
– – – |
|
|
100W |
– – – |
100W |
|
|
– – – |
100W |
100W |
|
Remark:DC and Type-C1 share one input, when they are charging at the same time, product can only be charged from the port that was connected first |
|||
HUNAN NEWSMY NEW ENERGY TECHNOLOGYCO.LTD.
Founded in 1996,Newsmy is a high-tech corporation which integrates R&D,manufacturing,distribution
and after-sales service with its headquarters in Chansha.Hunan province.Newsmy qroup has over
1000 employees working in 28 subsidiaries or holding companies.
Newsmy owns solid R&D and manufacturing structure with three centers in BeilingShezhen and
Changsha. The Hunan R&D and manufacturing base covers more than 40 acres and professional
R&D engineers are about 20% of total employees.After 26 years of development with strong R&D
capability and resource integration,Newsmy currently has complete product line in consumer
electronics industry,which includes Tablet PC,portable power stationcar Jump Startercar player
etc.
Q: What kind of cells used on this battery?
A: Different capacity with different cells, we make the battery with original A grade brand and high quality domestic cells,all can be customized as your requests.
Q: Do your battery come with charger?A: All of our batteries come with charger.We have normal charger and fast charger. The S2400 has the fast charger.
Q: Do your batteries come with BMS?A: Yes, Our batteries all with BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers’
requirements and designs, welcome to place OEM and ODM orders and visit our factory.
