SPECIFICATIONS
Advantage: Fast heat
Application: Industrial temperature measuring
Certification: CE, ISO9001
Dimension: 135mm(L)x72mm(W)x31mm(H)
Input: Single group input
Measuring range: -50 °C to 1300 °C; -50 °F to 1999 °F
Power supply: one 9V battery (included)
Product name: TES-1310 Digital Thermometer
Sensor: K type thermocouple
brand name: CHHT
customized support: OEM,ODM
model number: TES-1310
place of origin: Shanghai, China
type: TEMPERATURE CONTROLLER
warranty: 1 year
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;background-color:#f7f7f7;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:579px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{overflow:hidden;width:247.33333333333334px;height:351.80491942324005px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:3.004048582995952px;margin-left:0;width:247px;height:351px}#detail_decorate_root .magic-9{overflow:hidden;width:247.33333333333334px;height:351.80491942324005px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-10{margin-top:3.004048582995952px;margin-left:5.006747638326586px;width:234px;height:343px}#detail_decorate_root .magic-11{margin-top:3.004048582995952px;margin-left:0;width:247px;height:350px}#detail_decorate_root .magic-12{overflow:hidden;width:247.33333333333334px;height:352.8786495087865px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:247px;height:352px}#detail_decorate_root .magic-14{overflow:hidden;width:247.33333333333334px;height:352.47503373819166px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-15{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:1648px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:1648px}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:242.2905982905983px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:373px;height:242.2905982905983px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:242.2905982905983px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:403.2707423580786px;height:279px}#detail_decorate_root .magic-22{overflow:hidden;width:373px;height:253.92274052478135px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:373px;height:253.92274052478135px}#detail_decorate_root .magic-24{overflow:hidden;width:373px;height:253px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:449.5078031212485px;height:253px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:425px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:425px}#detail_decorate_root .magic-30{vertical-align:top}#detail_decorate_root .magic-31{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-32{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-33{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-34{font-size:16px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:836px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:836px}

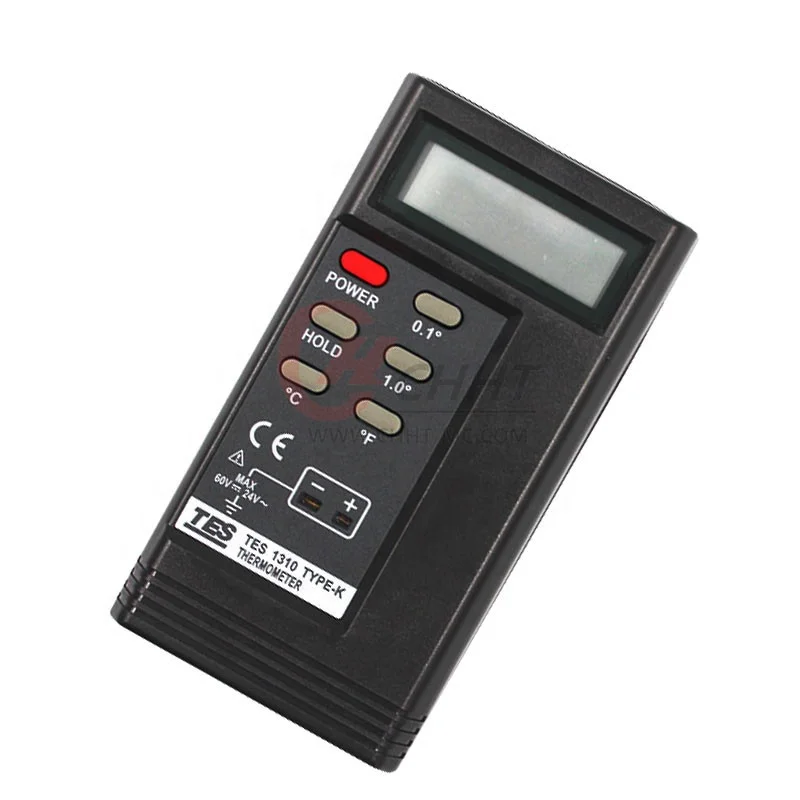

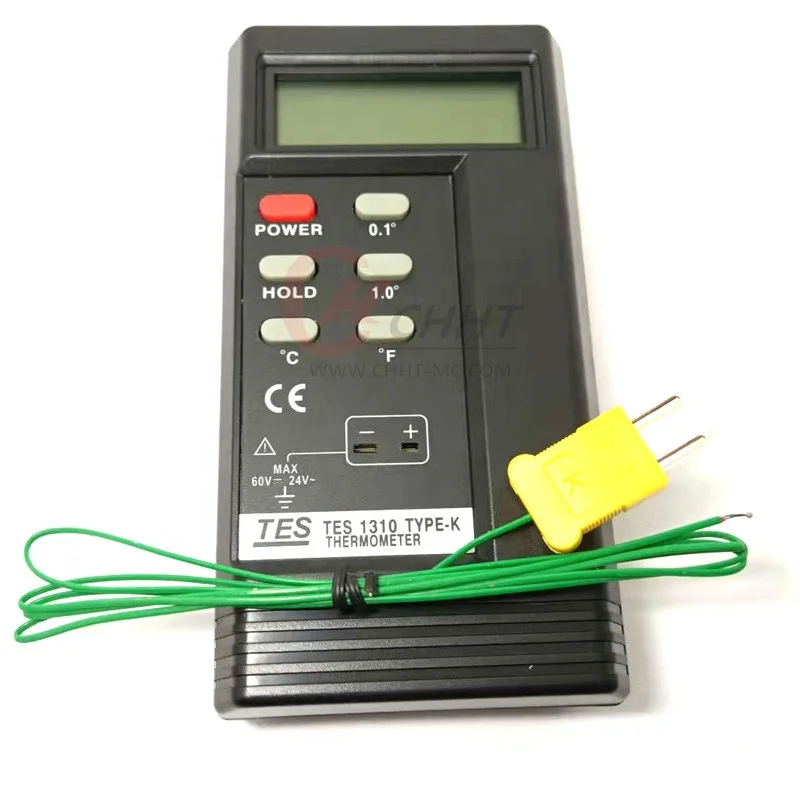

Product Picture
Product Description
|
Measuring range
|
-50 °C to 1300 °C; -50 °F to 1999 °F
|
|
Sensor
|
K Type thermocouple
|
|
Input
|
Single (1310)
|
|
Resolution
|
50 °C to 199.9 °C…0.1 °C
-50 °F to 199.9 °F …0.1 °F (Others-1 °C/1°F ) |
|
Accuracy
|
50 °C to 199.9°C…0.2% rdg + 1 °C
-50 °F to 199.9 °F …0.2% rdg + 1 °F -50 °C to 1000 °C… 0.3% rdg + 1 °C -50 °F to 1999 °F . ..0.3% rdg + 2°F 1000 °C to 1300 °C..0.5% rdg + 1 °C (apply to mainframe only at 23°C±5 °C) |
|
Function
|
H Data Hold & Display ℃/℉ switch selection 0.1°/1°
Resolution selection T1 or T2
Input selection T1-T2: Temperature difference between T1-T2 3-1/2 LCD display
Out of range indication: 1—— low battery indication: BT
|
|
Input protection
|
60V DC or 24 Vrms AC maximum input
|
|
Sampling rate
|
2.5 times/sec.
|
|
Operating condition
|
0 °C to 50 °C (32 °F to 122 °F ),
0 to 90% R.H. (0 to 35 °C) |
|
Power source
|
one 9V battery
|
|
Size
|
135mm(L)x72mm(W)x31mm(H)
|
|
Weight
|
157g
|
|

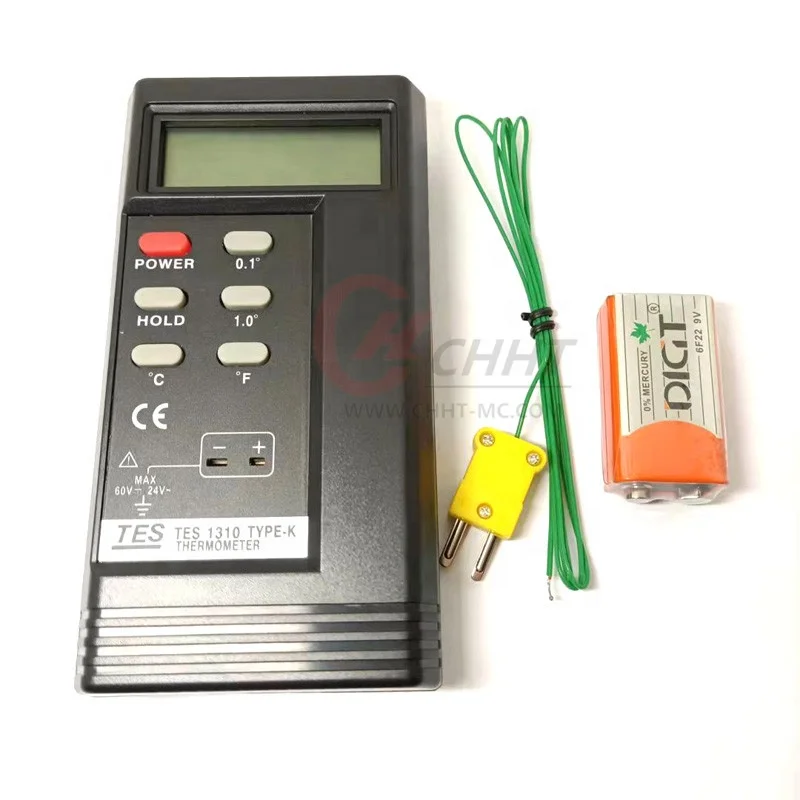

Accessorie
|
Battery, instruction manual
|
Certifications

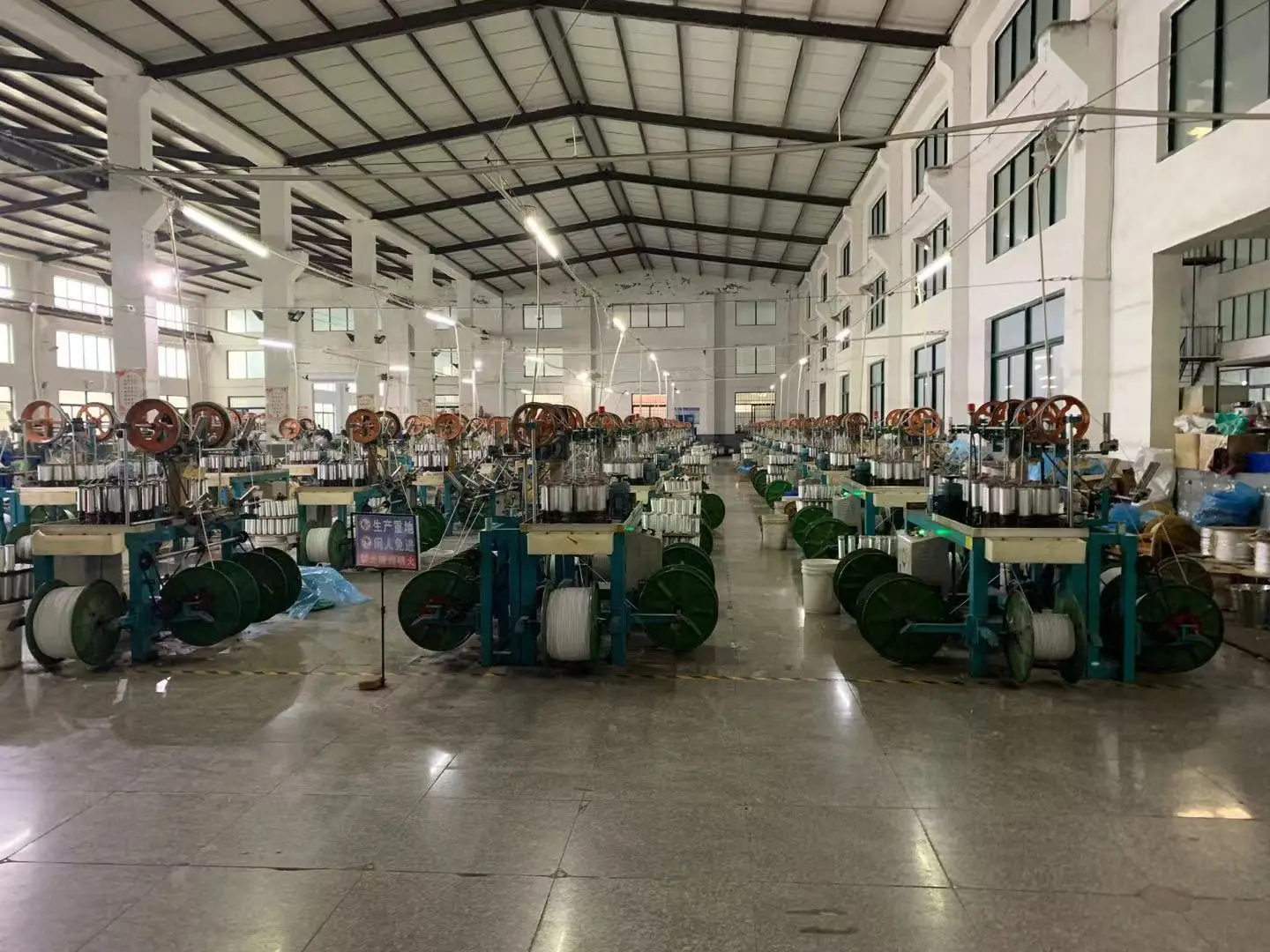

Production Process
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
